24G Automotive Millimeter-wave Radar HMR-CM-1301

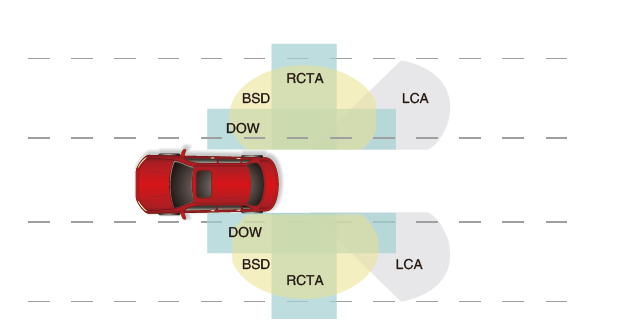

Application

BSD- Blind Spot Detection

RCTA- Rear Cross Traffic Alert

DOW- Door Open Warning

LCA- Lane Change Assist

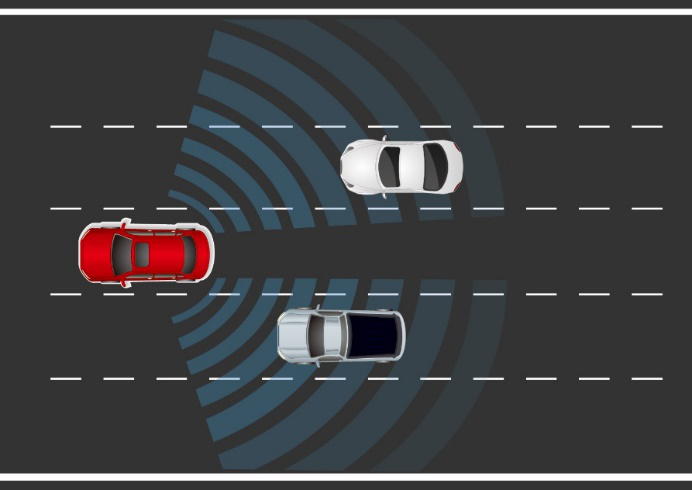

BSD

The BSD function is used to monitor the blind area of "view" during driving and provide the auxiliary warning during normal driving. It prompts or warns the driver of the potential risk when the system identifies a potentially hazardous target in the blind area.

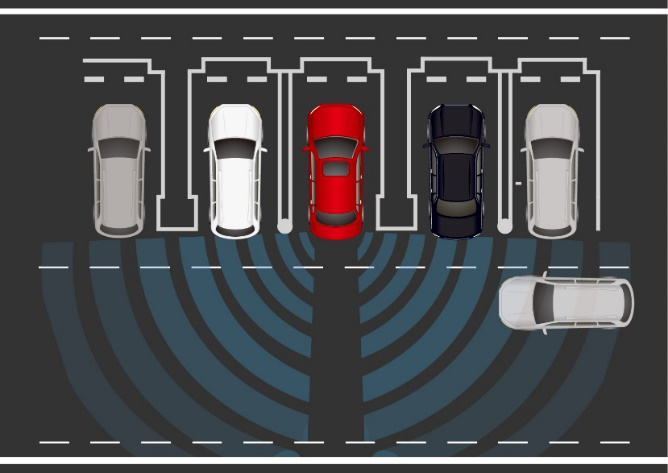

RCTA

The RCTA function is activated when the vehicle is driven away from the parking space and slowly reversing to detect the range of 100° blind spot on the two sides and behind the vehicle and the crossing targets within the distance of 30m.

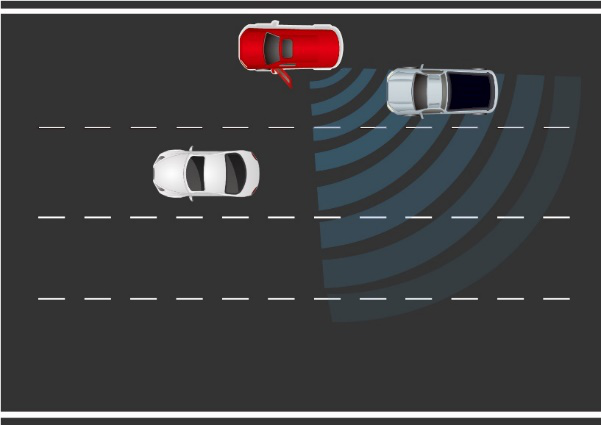

DOW

The DOW function is used to monitor the pedestrians or vehicles behind the vehicle. When the car is parked and the door is opened, if there is any target behind the door of the car, the system will remind automatically. Radar can quickly identify the approaching pedestrians, vehicles and other targets.

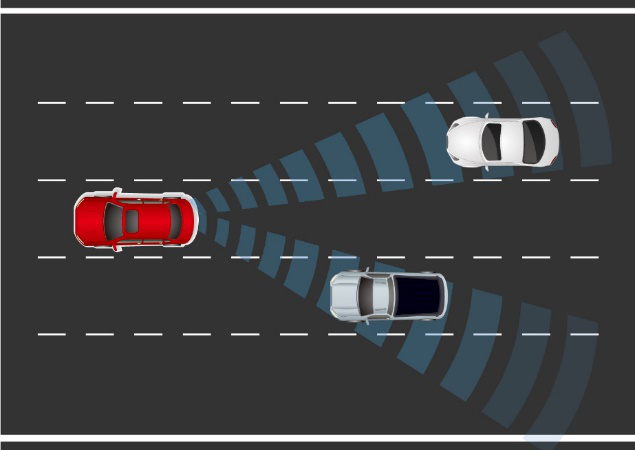

LCA

The LCA function is used to monitor the area within 70 meters behind the vehicle and provide auxiliary warning when the driver changes the lane during normal driving. When the system identifies that the lane change of the vehicle may cause a collision risk, it will prompt or warn the driver of the potential risk. It is an application of advanced driver assistance system (ADAS) products, which significantly reduce the driver's inconvenience of observation under harsh climatic conditions such as night, fog and heavy rain, as well as the potential danger of collision of adjacent lanes during the merging operation of the driver.
